020BK
Bracket made of pressed steel zinc plated blue passivated finished.
Double ballraces swivel head with hardened raceways.

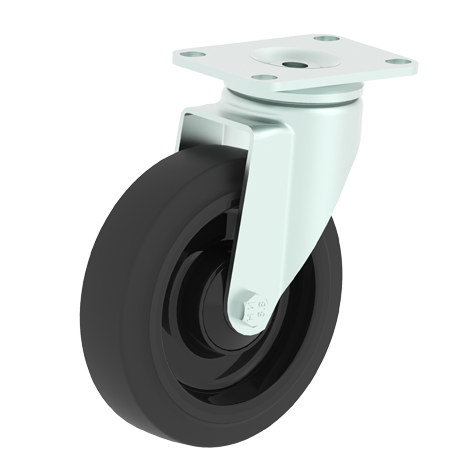

BN Elastic Black Rubber Wheel
High quality elastic rubber 65° Shore A,vulcanized and chemically bonded to nylon wheel centre.
High load capacity,low rolling resistance,high wear resistance,quiet & comfort operation.
PAHs Free and REACH conform.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 75 | 35 | 10 |  |
64x92 | 45x71/78 | 9 | 108 | 38 | 130 | 020BN077BE | 021BN077BE | 020BN077BE-AQ |
| 100 | 35 | 10 |  |
64x92 | 45x71/78 | 9 | 130 | 34 | 200 | 020BN100BE | 021BN100BE | 020BN100BE-AQ |
| 125 | 36 | 10 |  |
64x92 | 45x71/78 | 9 | 157 | 41 | 250 | 020BN124BE | 021BN124BE | 020BN124BE-AQ |
