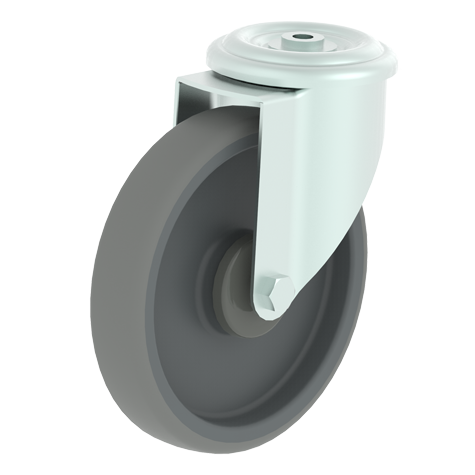

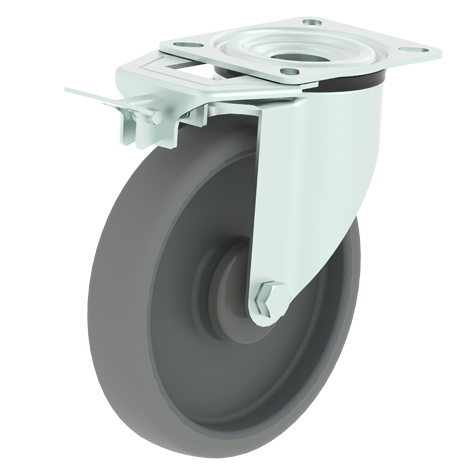

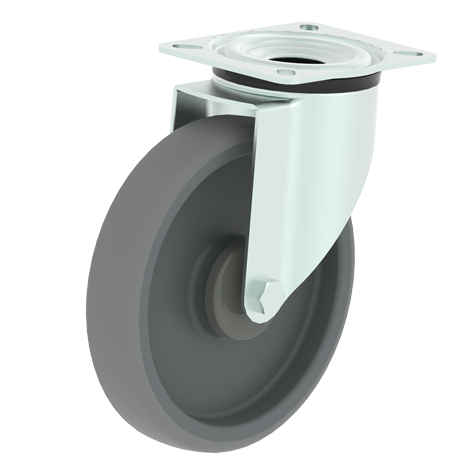

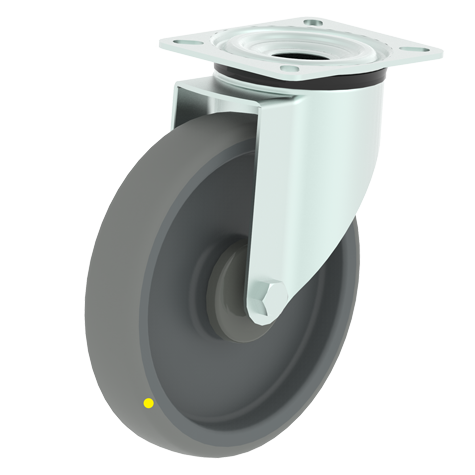

E10BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head strongly riveted together as one piece.
TE
Grey thermoplastic rubber tread moulded on Polypropylene rim.
Rubber hardness 65° Shore A.
Good resistance to chemicals.
Temperature range - 20°C to + 60°C.
Quiet operation,low rolling resistance.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 34 | 100 | E10TE080PF | 011TE080PF | E10TE080PF-Q |
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 34 | 100 | E10TE080RF | 011TE080RF | E10TE080RF-Q |
| 80 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 105 | 34 | 100 | E10TE080BD | 011TE080BD | E10TE080BD-Q |
| 100 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 34 | 120 | E10TE100PF | 011TE100PF | E10TE100PF-Q |
| 100 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 34 | 120 | E10TE100RF | 011TE100RF | E10TE100RF-Q |
| 100 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 128 | 34 | 120 | E10TE100BD | 011TE100BD | E10TE100BD-Q |
| 125 | 32 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 150 | E10TE125PG | 011TE125PG | E10TE125PG-Q |
| 125 | 32 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 150 | E10TE125RG | 011TE125RG | E10TE125RG-Q |
| 125 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 150 | E10TE125BD | 011TE125BD | E10TE125BD-Q |
| 125 | 32 | 10 | |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 150 | E10TE125BE | 011TE125BE | E10TE125BE-Q |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 170 | E10TE127PG | 011TE127PG | E10TE127PG-Q |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 170 | E10TE127RG | 011TE127RG | E10TE127RG-Q |
| 125 | 40 | 8 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 170 | E10TE127BD | 011TE127BD | E10TE127BD-Q |
| 125 | 40 | 10 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 170 | E10TE127BE | 011TE127BE | E10TE127BE-Q |
| 160 | 40 | 20 |  |
135x110 | 110x85/100x75 | 11 | 195 | 53 | 220 | E10TE160PH | 011TE160PH | E10TE160PH-Q |
| 160 | 40 | 20 |  |
135x110 | 110x85/100x75 | 11 | 195 | 53 | 220 | E10TE160RH | 011TE160RH | E10TE160RH-Q |
| 160 | 40 | 12 |  |
135x110 | 110x85/100x75 | 11 | 195 | 53 | 220 | E10TE160BF | 011TE160BF | E10TE160BF-Q |
| 200 | 40 | 20 |  |
135x110 | 110x85/100x75 | 11 | 235 | 53 | 240 | E10TE200PH | 011TE200PH | E10TE200PH-Q |
| 200 | 40 | 20 |  |
135x110 | 110x85/100x75 | 11 | 235 | 53 | 240 | E10TE200RH | 011TE200RH | E10TE200RH-Q |
| 200 | 40 | 12 |  |
135x110 | 110x85/100x75 | 11 | 235 | 53 | 240 | E10TE200BF | 011TE200BF | E10TE200BF-Q |
