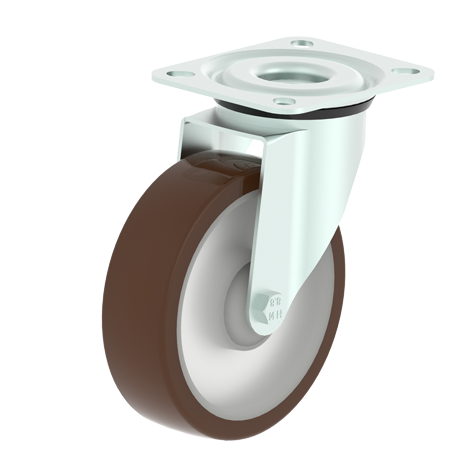

NE10BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head strongly riveted together as one piece.
TU Thermoplastic Polyurethane Wheel
Thermoplastic Polyurethane tread hardness 94° Shore A,moulded on nylon centre.
Temperature range - 20°C to + 70°C
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 12 |  |
105x85 | 82c62/78x58 | 9 | 105 | 40 | 150 | NE10TU081PF | N011TU081PF | NE10TU081PF-AQ |
| 80 | 32 | 12 |  |
105x85 | 82c62/78x58 | 9 | 105 | 40 | 150 | NE10TU081RF | N011TU081RF | NE10TU081RF-AQ |
| 80 | 32 | 8 |  |
105x85 | 82c62/78x58 | 9 | 105 | 40 | 150 | NE10TU081BD | N011TU081BD | NE10TU081BD-AQ |
| 100 | 36 | 12 |  |
105x85 | 82c62/78x58 | 9 | 128 | 40 | 200 | NE10TU102PF | N011TU102PF | NE10TU102PF-AQ |
| 100 | 36 | 12 |  |
105x85 | 82c62/78x58 | 9 | 128 | 40 | 200 | NE10TU102RF | N011TU102RF | NE10TU102RF-AQ |
| 100 | 36 | 8 |  |
105x85 | 82c62/78x58 | 9 | 128 | 40 | 200 | NE10TU102BD | N011TU102BD | NE10TU102BD-AQ |
| 125 | 37 | 12 |  |
105x85 | 82c62/78x58 | 9 | 156 | 40 | 200 | NE10TU125PF | N011TU125PF | NE10TU125PF-AQ |
| 125 | 37 | 12 |  |
105x85 | 82c62/78x58 | 9 | 156 | 40 | 200 | NE10TU125RF | N011TU125RF | NE10TU125RF-AQ |
| 125 | 37 | 8 |  |
105x85 | 82c62/78x58 | 9 | 156 | 40 | 200 | NE10TU125BD | N011TU125BD | NE10TU125BD-AQ |
