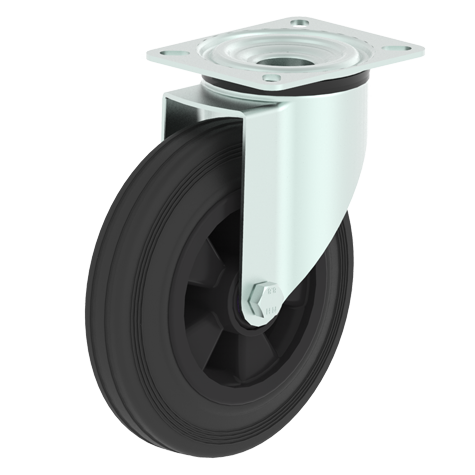

010BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head with strong kingpin.
BP Black Rubber Wheel
Solid rubber tyre pressed on high impact co-polymer Polypropylene Centre.
Rubber hardness 80° Shore A.
Temperature range - 20°C to + 60°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 25 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 50 | 010BP080PF | 011BP080PF | 010BP080PF-Q |
| 80 | 25 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 50 | 010BP080RF | 011BP080RF | 010BP080RF-Q |
| 100 | 30 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 41 | 100 | 010BP100PF | 011BP100PF | 010BP100PF-Q |
| 100 | 30 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 41 | 100 | 010BP100RF | 011BP100RF | 010BP100RF-Q |
| 125 | 37.5 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 100 | 010BP125PG | 011BP125PG | 010BP125PG-Q |
| 125 | 37.5 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 100 | 010BP125RG | 011BP125RG | 010BP125RG-Q |
| 160 | 40 | 20 |  |
140x110 | 110x85/100x75 | 11 | 195 | 60 | 135 | 010BP160PH | 011BP160PH | 010BP160PH-AQ |
| 160 | 40 | 20 |  |
140x110 | 110x85/100x75 | 11 | 195 | 60 | 135 | 010BP160RH | 011BP160RH | 010BP160RH-AQ |
| 200 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 235 | 67 | 205 | 010BP200PH | 010BP200PH | 010BP200PH-AQ |
| 200 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 235 | 67 | 205 | 010BP200RH | 011BP200RH | 010BP200RH-AQ |
