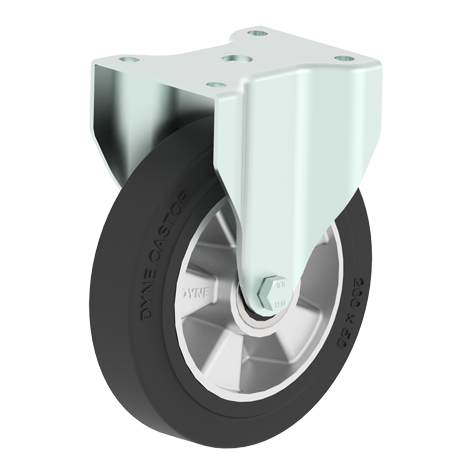

110BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head with strong kingpin,160/200 swivel head
rivet design,without kingpin.
EA High Elastic Black Rubber Wheel
High quality elastic rubber 65° Shore A,
vulcanized and chemically bonded to aluminium wheel centre.
Low rolling resistance,high wear resistance,quiet & comfort operation.
PAHs Free and REACH conform.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 40 | 15 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 180 | 110EA081DG | 111EA081DG | 110EA081DG-Q |
| 100 | 40 | 15 | |
105x86 | 82/77x60 | 9 | 130 | 40 | 200 | 110EA101DG | 111EA101DG | 110EA101DG-Q |
| 125 | 40 | 15 | |
105x86 | 82/77x60 | 9 | 156 | 43 | 250 | 110EA126DG | 111EA126DG | 110EA126DG-Q |
| 125 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 165 | 43 | 300 | 110EA125DH-P13* | 111EA125DH-P13* | 110EA125DH-P13*-Q |
| 140 | 50 | 20 | |
125x125 | 100x100 | 11 | 175 | 48.5 | 270 | 110EA142DH | - | - |
| 150 | 40 | 15 | |
135x110 | 105x80/75 | 11 | 190 | 53 | 300 | 110EA151DG | 111EA151DG | 110EA151DG-Q |
| 150 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 190 | 53 | 400 | 110EA152DH | 111EA152DH | 110EA152DH-Q |
| 160 | 40 | 15 | |
135x110 | 105x80/75 | 11 | 195 | 53 | 300 | 110EA161DG | 111EA161DG | 110EA161DG-Q |
| 160 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 195 | 53 | 400 | 110EA160DH | 111EA160DH | 110EA160DH-Q |
| 180 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 228 | 53 | 450 | 110EA180DH | 111EA180DH | 110EA180DH-Q |
| 200 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 110EA200DH | 111EA200DH | 110EA200DH-Q |
| 250 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 290 | 53 | 500 | 110EA250DH | 111EA250DH | 110EA250DH-I |
