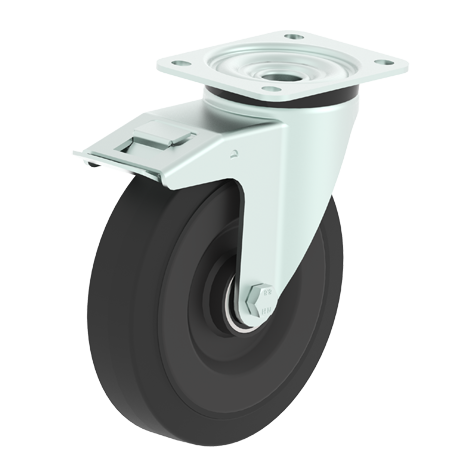

110BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head with strong kingpin,160/200 swivel head
rivet design,without kingpin.
BS Elastic Black Rubber Wheel
High quality elastic rubber 65° Shore A.
Pressed thick steel centre welded to tubular steel hub.
High load capacity,shock and impact resistant,resistant to dirt,low rolling resistance.
PAHs Free and REACH conform.
Temperature range -20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | 110BS160DH | 111BS160DH | 110BS160DH-Q |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 110BS200DH | 111BS200DH | 110BS200DH-Q |
