110BK

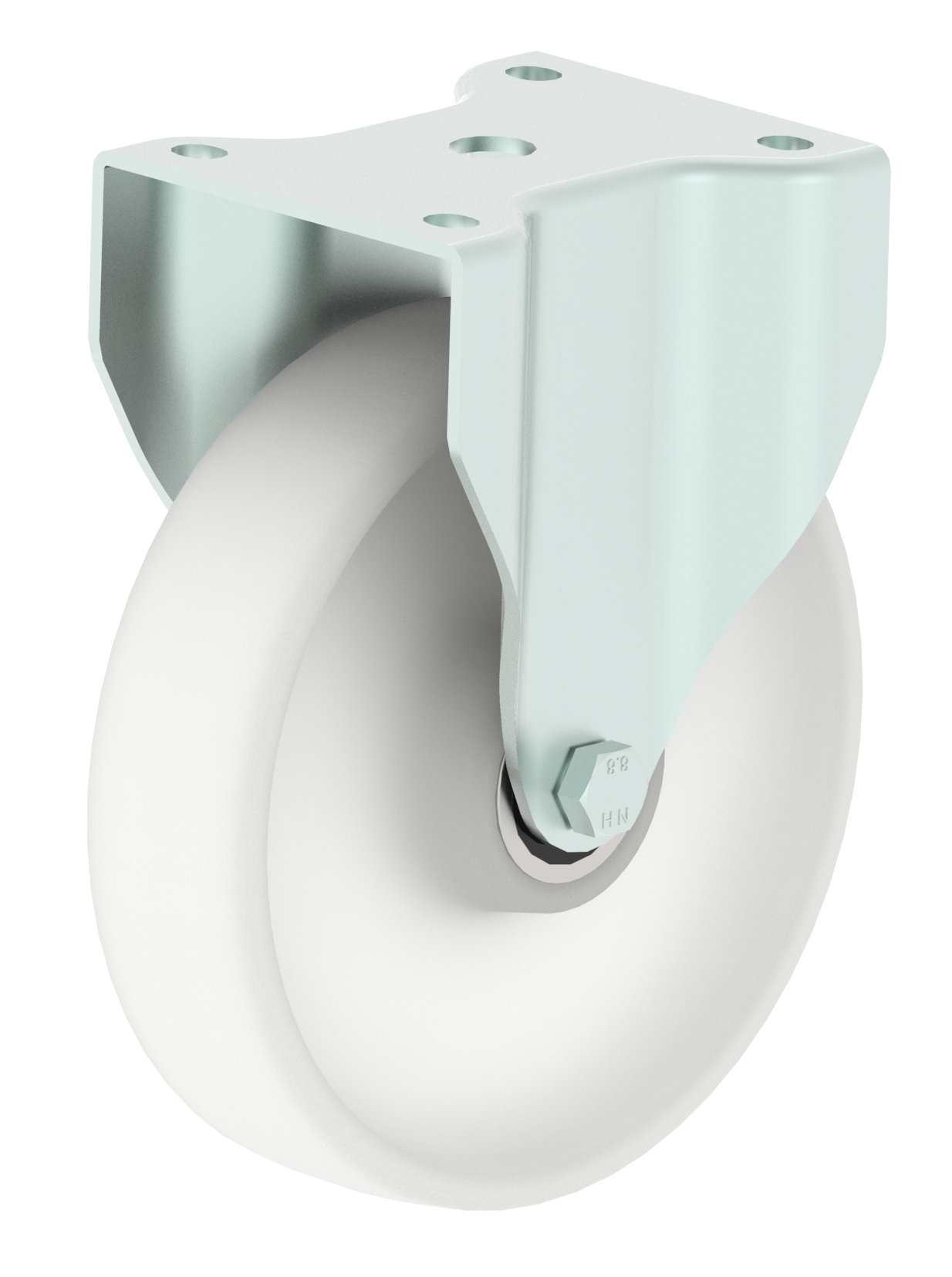

Bracket made of pressed steel,zinc plated blue passivated finished.

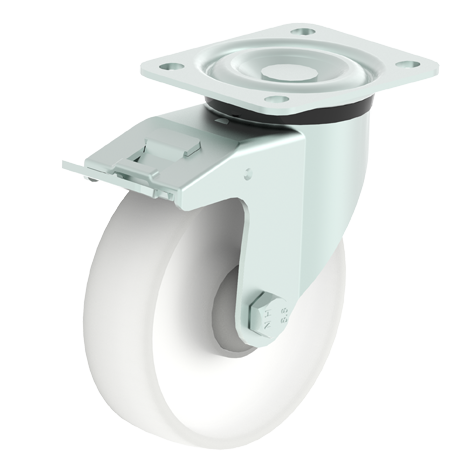

Double ballraces swivel head with strong kingpin,160/200 swivel head
rivet design,without kingpin.
NY Injection Polyamide 6 Wheel
Wheel made by injection of high quality nylon 6.
High load capacity,low rolling resistance,high impact strength,good abrasion resistance.
Temperature range - 20°C to + 80°C
Max.working speed 4km/h.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 15 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 200 | 110NY081PG | 111NY081PG | 110NY081PG-Q |
| 80 | 32 | 15 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 200 | 110NY081RG | 111NY081RG | 110NY081RG-Q |
| 80 | 32 | 10 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 200 | 110NY081BE | 111NY081BE | 110NY081BE-Q |
| 100 | 36 | 15 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | 110NY101PG | 111NY101PG | 110NY101PG-Q |
| 100 | 36 | 15 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | 110NY101RG | 111NY101RG | 110NY1016RG-Q |
| 100 | 36 | 8 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | 110NY101BD | 111NY101BD | 110NY101BD-Q |
| 100 | 36 | 10 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | 110NY101BE | 111NY101BE | 110NY101BE-Q |
| 125 | 37 | 15 |  |
105x86 | 82/77x60 | 9 | 156 | 43 | 300 | 110NY126PG | 111NY126PG | 110NY126PG-Q |
| 125 | 37 | 15 |  |
105x86 | 82/77x60 | 9 | 156 | 43 | 300 | 110NY126RG | 111NY126RG | 110NY126RG-Q |
| 125 | 37 | 8 |  |
105x86 | 82/77x60 | 9 | 156 | 43 | 300 | 110NY126BD | 111NY126BD | 110NY126BD-Q |
| 125 | 37 | 10 |  |
105x86 | 82/77x60 | 9 | 156 | 43 | 300 | 110NY126BE | 111NY126BE | 110NY126BE-Q |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 165 | 43 | 400 | 110NY127PH-P13* | 111NY127PH-P13* | 110NY127PH-Q-P13* |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 165 | 43 | 400 | 110NY127RH-P13* | 111NY127RH-P13* | 110NY127RH-Q-P13* |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 165 | 43 | 400 | 110NY127DH-P13* | 111NY127DH-P13* | 110NY127DH-Q-P13* |
| 150 | 40 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 450 | 110NY151PH | 111NY151PH | 110NY151PH-Q |
| 150 | 40 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 450 | 110NY151RH | 111NY151RH | 110NY151RH-Q |
| 150 | 40 | 15 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 450 | 110NY151DG | 111NY151DG | 110NY151DG-Q |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | 110NY160PH | 111NY160PH | 110NY160PH-Q |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | 110NY160RH | 111NY160RH | 110NY160RH-Q |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | 110NY160DH | 111NY160DH | 110NY160DH-Q |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 110NY200PH | 111NY200PH | 110NY200PH-Q |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 110NY200RH | 111NY200RH | 110NY200RH-Q |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 110NY201DH | 111NY201DH | 110NY201DH-Q |
