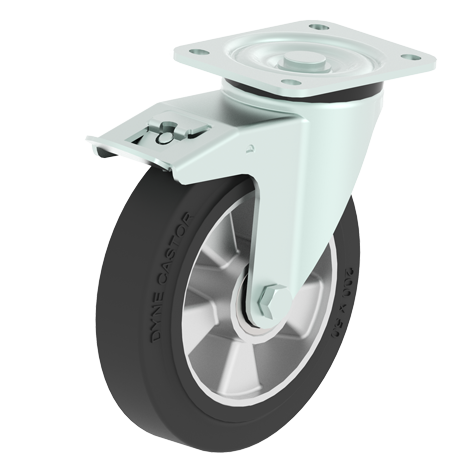

120BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head with strong kingpin.
EA High Elastic Black Rubber Wheel
High quality elastic rubber 65° Shore A,
vulcanized and chemically bonded to aluminium wheel centre.
Low rolling resistance,high wear resistance,quiet & comfort operation.
PAHs Free and REACH conform.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 150 | 40 | 15 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 300 | 120EA151DG | 111EA151DG | 120EA151DG-AQ |
| 150 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 400 | 120EA152DH | 111EA152DH | 120EA152DH-AQ |
| 160 | 40 | 15 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 300 | 120EA161DG | 111EA161DG | 120EA161DG-AQ |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 400 | 120EA160DH | 111EA160DH | 120EA160DH-AQ |
| 180 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 228 | 53 | 450 | 120EA180DH | 111EA180DH | 120EA180DH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 120EA200DH | 111EA200DH | 120EA200DH-AQ |
| 250 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 290 | 53 | 650 | 120EA250DH | 111EA250DH | 120EA250DH-I |
