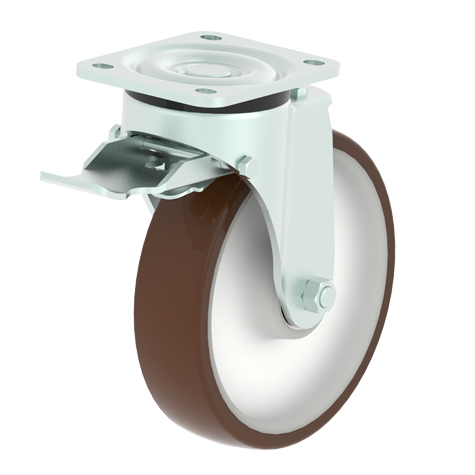

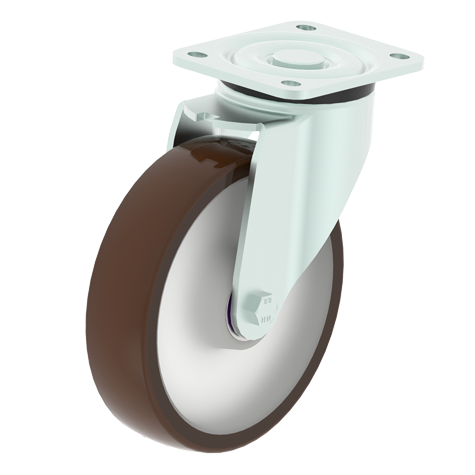

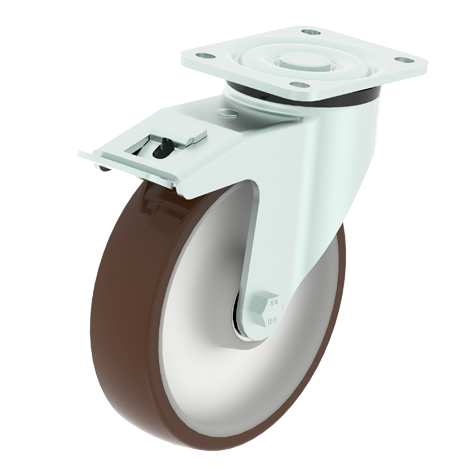

210TU 欧洲款重型注塑聚氨酯脚轮
200~500 kg
210 支架
支架是用厚钢板压制成型，金属件镀锌处理。
双层滚珠轴承转动，硬化钢防护罩保护，结构稳固牢靠。
高质量热塑性注塑聚氨酯轮尼龙轮芯，表面硬度邵氏94ºA。
精密滚珠轴承。
高负载，低滚动阻力，耐磨，静音及易于操作。
使用温度：-20℃~+70℃。
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 100 | 36 | 15 |  |
105x86 | 80/77x60 | 9 | 140 | 45 | 200 | 210TU101PG | 211TU101PG | 210TU101PG-AQ |
| 100 | 36 | 15 |  |
105x86 | 80/77x60 | 9 | 140 | 45 | 200 | 210TU101RG | 211TU101RG | 210TU101RG-AQ |
| 100 | 36 | 10 |  |
105x86 | 80/77x60 | 9 | 140 | 45 | 200 | 210TU101BE | 211TU101BE | 210TU101BE-AQ |
| 125 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 165 | 45 | 250 | 210TU126PG | 211TU126PG | 210TU126PG-AQ |
| 125 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 165 | 45 | 250 | 210TU126RG | 211TU126RG | 210TU126RG-AQ |
| 125 | 37 | 10 |  |
105x86 | 80/77x60 | 9 | 165 | 45 | 250 | 210TU126BE | 211TU126BE | 210TU126BE-AQ |
| 160 | 45 | 20 |  |
135x110 | 105x80/75 | 11 | 205 | 65 | 400 | 210TU160PH | 211TU160PH | 210TU160PH-AQ |
| 160 | 45 | 20 |  |
135x110 | 105x80/75 | 11 | 205 | 65 | 400 | 210TU160RH | 211TU160RH | 210TU160RH-AQ |
| 160 | 45 | 20 |  |
135x110 | 105x80/75 | 11 | 205 | 65 | 400 | 210TU160DH | 211TU160DH | 210TU160DH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 245 | 65 | 500 | 210TU200PH | 211TU200PH | 210TU200PH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 245 | 65 | 500 | 210TU200RH | 211TU200RH | 210TU200RH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 245 | 65 | 500 | 210TU200DH | 211TU200DH | 210TU200DH-AQ |
