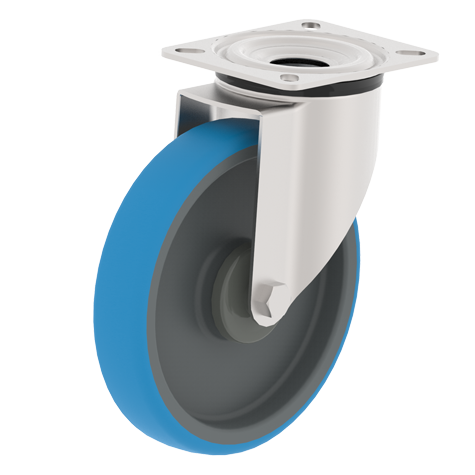

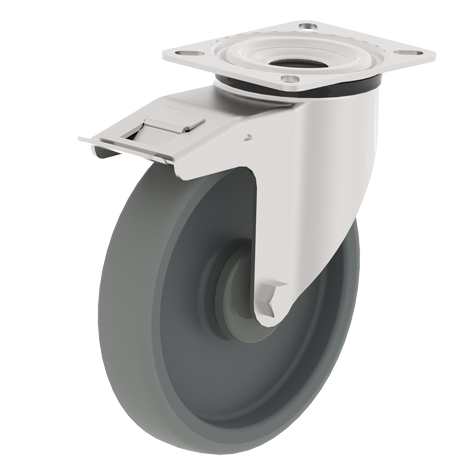

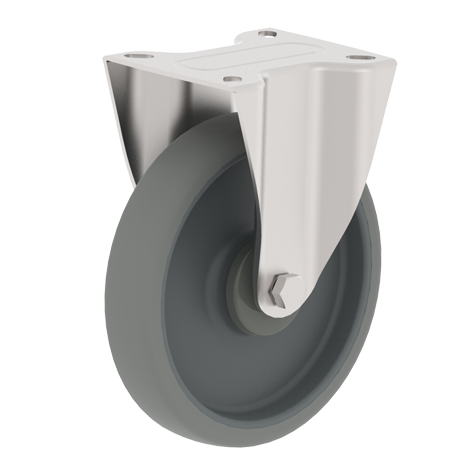

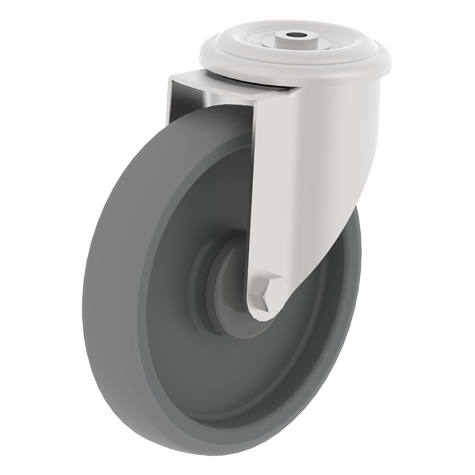

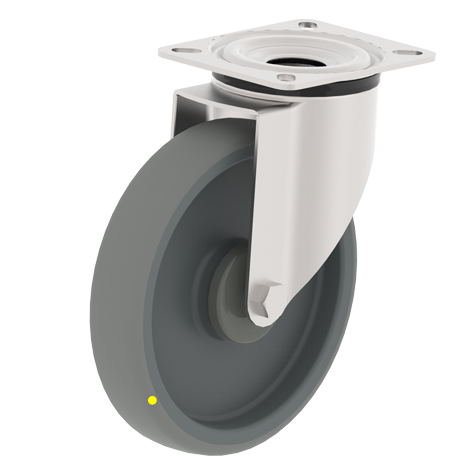

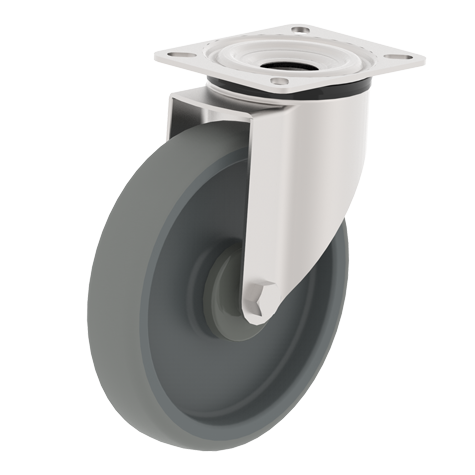

SE10 支架
支架是用 AISI 304 不绣钢压制成型及表面抛光完成。
双层滚珠轴承转动机制，铆合成一体，底板孔距符合ISO标准。
支架及配件全用不绣钢材质。
高质量热塑性橡胶轮面聚丙烯轮芯，橡胶表面硬度邵氏65ºA。
精密滚珠轴承配压入式密封圈。
不留痕、静音操作、低滚动阻力，防震及耐冲击，防止轮面因长期压重而变形。
拥有耐化学品、耐酸性、耐乙醇、耐力及蒸汽性能。
使用温度：-20℃~+60℃。
最高使用速度：4公里/小时。
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 34 | 100 | SE10TE080XPF | S011TE080XPF | SE10TE080XPF-Q |
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 34 | 100 | SE10TE080XRF | S011TE080XRF | SE10TE080XRF-Q |
| 80 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 105 | 34 | 100 | SE10TE080XBD | S011TE080XBD | SE10TE080XBD-Q |
| 100 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 34 | 120 | SE10TE100XPF | S011TE100XPF | SE10TE100XPF-Q |
| 100 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 34 | 120 | SE10TE100XRF | S011TE100XRF | SE10TE100XRF-Q |
| 100 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 128 | 34 | 120 | SE10TE100XBD | S011TE100XBD | SE10TE100XBD-Q |
| 125 | 32 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 150 | SE10TE125XPG | S011TE125XPG | SE10TE125XPG-Q |
| 125 | 32 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 150 | SE10TE125XRG | S011TE125XRG | SE10TE125XRG-Q |
| 125 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 150 | SE10TE125XBD | S011TE125XBD | SE10TE125XBD-Q |
| 125 | 32 | 10 | |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 150 | SE10TE125XBE | S011TE125XBE | SE10TE125XBE-Q |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 170 | SE10TE127XPG | S011TE127XPG | SE10TE127XPG-Q |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 170 | SE10TE127XRG | S011TE127XRG | SE10TE127XRG-Q |
| 125 | 40 | 8 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 170 | SE10TE127XBD | S011TE127XBD | SE10TE127XBD-Q |
| 125 | 40 | 10 |  |
105x85 | 82x62/78x58 | 9 | 156 | 32 | 170 | SE10TE127XBE | S011TE127XBE | SE10TE127XBE-Q |
| 160 | 40 | 20 |  |
135x110 | 110x85/100x75 | 11 | 195 | 53 | 220 | SE10TE160XPH | S011TE160XPH | SE10TE160XPH-Q |
| 160 | 40 | 20 |  |
135x110 | 110x85/100x75 | 11 | 195 | 53 | 220 | SE10TE160XRH | S011TE160XRH | SE10TE160XRH-Q |
| 160 | 40 | 12 |  |
135x110 | 110x85/100x75 | 11 | 195 | 53 | 220 | SE10TE160XBF | S011TE160XBF | SE10TE160XBF-Q |
| 200 | 40 | 20 |  |
135x110 | 110x85/100x75 | 11 | 235 | 53 | 240 | SE10TE200XPH | S011TE200XPH | SE10TE200XPH-Q |
| 200 | 40 | 20 |  |
135x110 | 110x85/100x75 | 11 | 235 | 53 | 240 | SE10TE200XRH | S011TE200XRH | SE10TE200XRH-Q |
| 200 | 40 | 12 |  |
135x110 | 110x85/100x75 | 11 | 235 | 53 | 240 | SE10TE200XBF | S011TE200XBF | SE10TE200XBF-Q |
