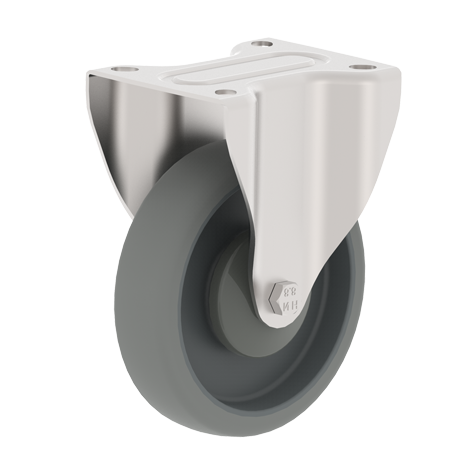

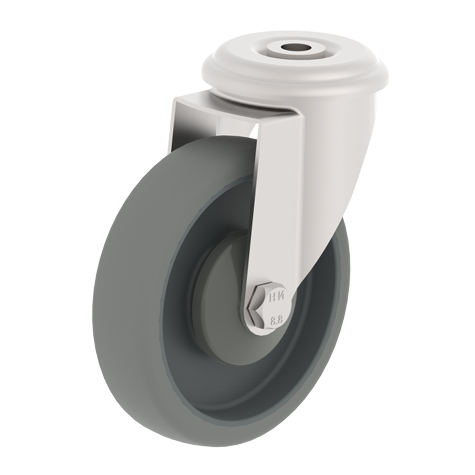

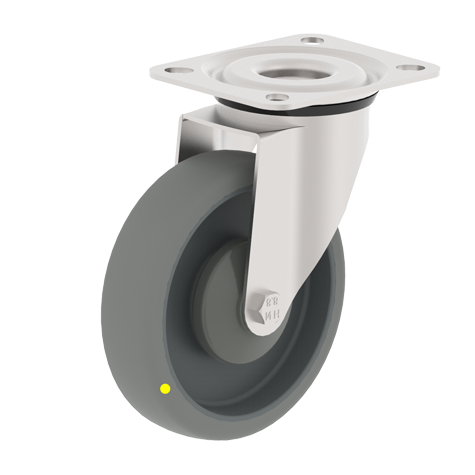

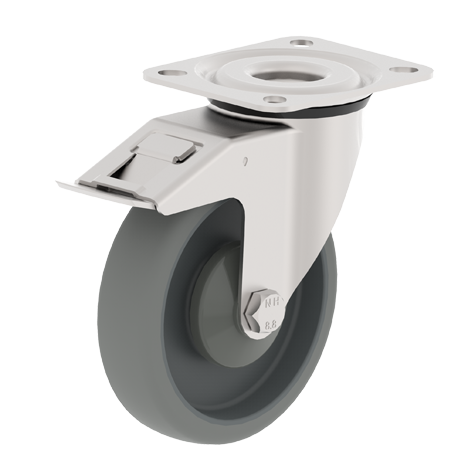

SNE10 支架
支架是用 AISI 304 不绣钢压制成型及表面抛光完成。
双层滚珠轴承转动机制，铆合成一体，底板孔距符合ISO标准。
支架及配件全用不绣钢材质。
高质量热塑性橡胶轮面聚丙烯轮芯，橡胶表面硬度邵氏65ºA。
精密滚珠轴承配压入式密封圈。
不留痕、静音操作、低滚动阻力，防震及耐冲击，防止轮面因长期压重而变形。
拥有耐化学品、耐酸性、耐乙醇、耐力及蒸汽性能。
使用温度：-20℃~+60℃。
最高使用速度：4公里/小时。
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 40 | 100 | SNE10TE081XPF | SN011TE081XPF | SNE10TE081XPF-AQ |
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 40 | 100 | SNE10TE081XRF | SN011TE081XRF | SNE10TE081XRF-AQ |
| 80 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 105 | 40 | 100 | SNE10TE081XBD | SN011TE081XBD | SNE10TE081XBD-AQ |
| 100 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 40 | 120 | SNE10TE101XPF | SN011TE101XPF | SNE10TE101XPF-AQ |
| 100 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 40 | 120 | SNE10TE101XRF | SN011TE101XRF | SNE10TE101XRF-AQ |
| 100 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 128 | 40 | 120 | SNE10TE101XBD | SN011TE101XBD | SNE10TE101XBD-AQ |
| 125 | 32 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 150 | SNE10TE125XPG | SN011TE125XPG | SNE10TE125XPG-AQ |
| 125 | 32 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 150 | SNE10TE125XRG | SN011TE125XRG | SNE10TE125SRG-AQ |
| 125 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 150 | SNE10TE125XBD | SN011TE125XBD | SNE10TE125XBD-AQ |
| 125 | 32 | 10 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 150 | SNE10TE125XBE | SN011TE125XBE | SNE10TE125XBE-AQ |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 170 | SNE10TE127XPG | SN011TE127XPG | SNE10TE127XPG-AQ |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 170 | SNE10TE127XRG | SN011TE127XRG | SNE10TE127XRG-AQ |
| 125 | 40 | 8 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 170 | SNE10TE127XBD | SN011TE127XBD | SNE10TE127XBD-AQ |
| 125 | 40 | 10 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 170 | SNE10TE127XBE | SN011TE127XBE | SNE10TE127XBE-AQ |
