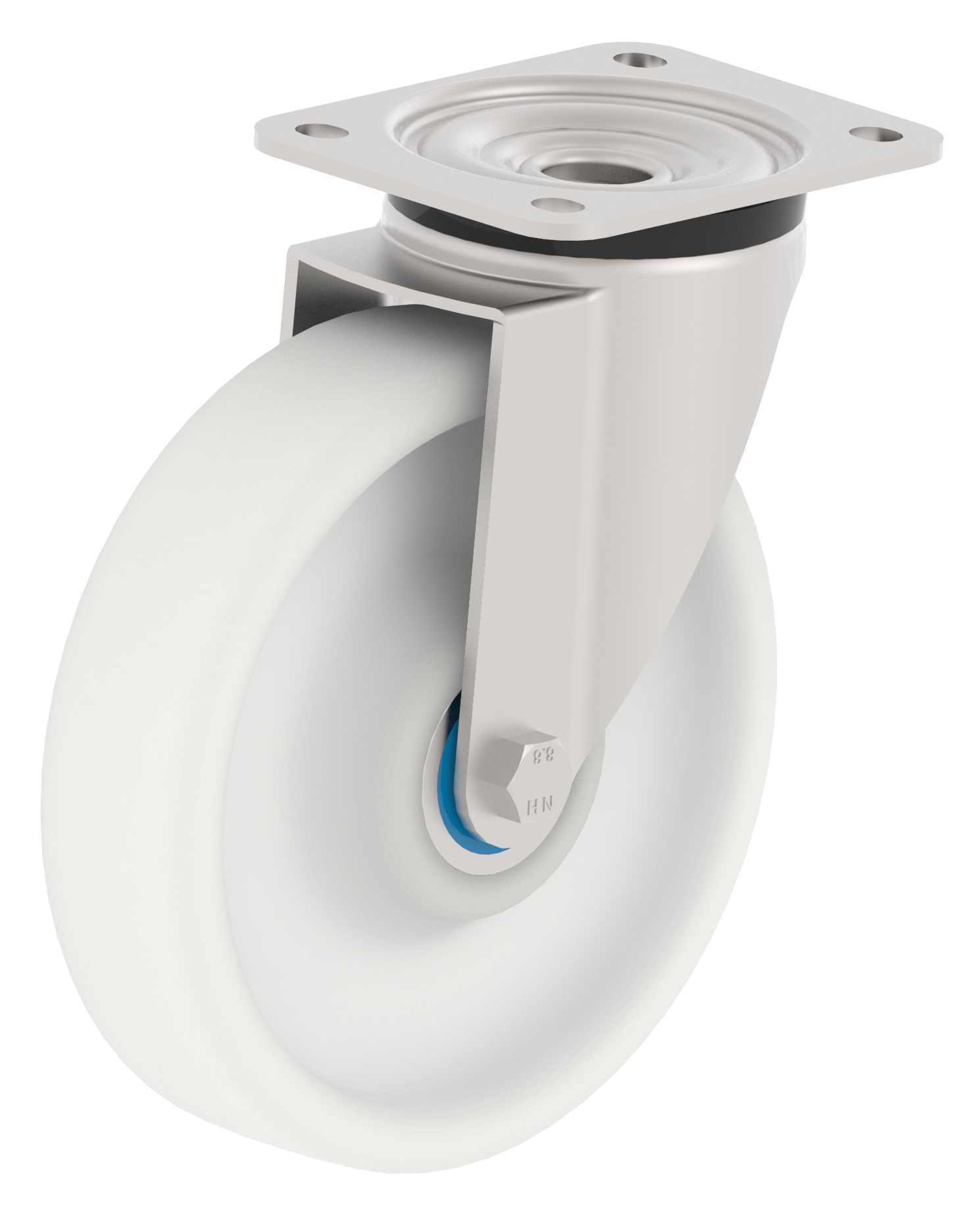

S110NY 欧洲款中型尼龙不绣钢脚轮
200~500 kg
S110 支架
支架是用 AISI 304 不绣钢压制成型。
双层滚珠轴承转动，牢固中心栓。
NY 尼龙轮尼龙轮用高级工程塑料尼龙6注塑成形。
载重力强，滚动阻力小，耐冲击，抗腐蚀和耐磨。
使用温度：-20°C~+80°C。
最高使用速度4公里/小时。
S110 支架
支架是用 AISI 304 不绣钢压制成型。
双层滚珠轴承转动，牢固中心栓。
NY 尼龙轮尼龙轮用高级工程塑料尼龙6注塑成形。
载重力强，滚动阻力小，耐冲击，抗腐蚀和耐磨。
使用温度：-20°C~+80°C。
最高使用速度4公里/小时。
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 15 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 200 | S110NY081XPG | S111NY081XPG | S110NY081XPG-Q |
| 80 | 32 | 10 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 200 | S110NY081XBE | S111NY081XBE | S110NY081XBE-Q |
| 100 | 36 | 15 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | S110NY101XPG | S111NY101XPG | S110NY101XPG-Q |
| 100 | 36 | 15 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | S110NY101XRG | S111NY101XRG | S110NY1016XRG-Q |
| 100 | 36 | 8 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | S110NY101XBD | S111NY101XBD | S110NY101XBD-Q |
| 100 | 36 | 10 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | S110NY101XBE | S111NY101XBE | S110NY101XBE-Q |
| 125 | 37 | 15 |  |
105x86 | 82/77x60 | 9 | 156 | 43 | 300 | S110NY126XPG | S111NY126XPG | S110NY126XPG-Q |
| 125 | 37 | 15 |  |
105x86 | 82/77x60 | 9 | 156 | 43 | 300 | S110NY126XRG | S111NY126XRG | S110NY126XRG-Q |
| 125 | 37 | 8 |  |
105x86 | 82/77x60 | 9 | 156 | 43 | 300 | S110NY126XBD | S111NY126XBD | S110NY126XBD-Q |
| 125 | 37 | 10 |  |
105x86 | 82/77x60 | 9 | 156 | 43 | 300 | S110NY126XBE | S111NY126XBE | S110NY126XBE-Q |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 165 | 43 | 400 | S110NY127XPH-P13* | S111NY127XPH-P13* | S110NY127XPH-Q-P13* |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 165 | 43 | 400 | S110NY127XRH-P13* | S111NY127XRH-P13* | S110NY127XRH-Q-P13* |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 165 | 43 | 400 | S110NY127XDH-P13* | S111NY127XDH-P13* | S110NY127XDH-Q-P13* |
| 150 | 40 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 450 | S110NY151XPH | S111NY151XPH | S110NY151XPH-Q |
| 150 | 40 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 450 | S110NY151XRH | S111NY151XRH | S110NY151XRH-Q |
| 150 | 40 | 15 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 450 | S110NY151XDG | S111NY151XDG | S110NY151XDG-Q |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | S110NY160XPH | S111NY160XPH | S110NY160XPH-Q |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | S110NY160XRH | S111NY160XRH | S110NY160XRH-Q |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | S110NY160XDH | S111NY160XDH | S110NY160XDH-Q |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | S110NY200XPH | S111NY200XPH | S110NY200XPH-Q |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | S110NY200XRH | S111NY200XRH | S110NY200XRH-Q |
| 200 | 50 | 15 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | S110NY200XDG | S111NY200XDG | S110NY200XDG-Q |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | S110NY200XDH | S111NY200XDH | S110NY200XDH-Q |
| 250 | 50 | 25 |  |
135x110 | 105x80/75 | 11 | 290 | 53 | 500 | S110NY251XPI | S111NY251XPI | S110NY251XPI-I |
