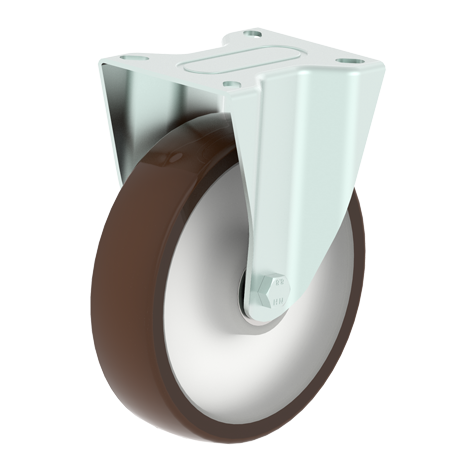

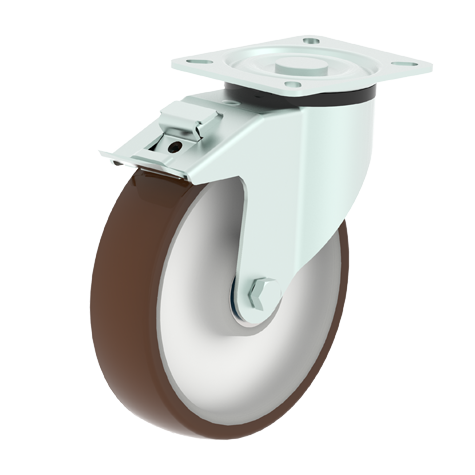

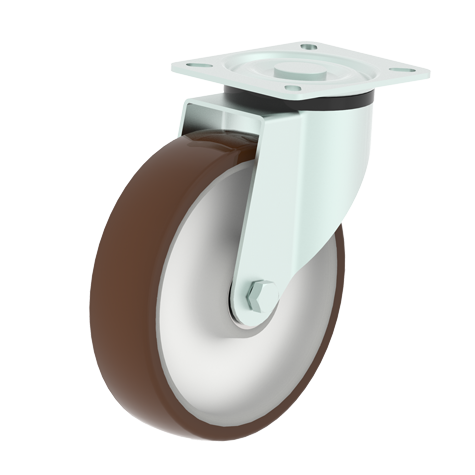

010TU 欧洲款注塑聚氨酯脚轮
150~400 kg
010 支架
双层滚珠轴承转动，底板孔距符合ISO标准。
牢固中心栓，金属件镀锌处理。
高质量热塑性注塑聚氨酯轮尼龙轮芯，表面硬度邵氏94ºA。
精密滚珠轴承。
高负载，低滚动阻力，耐磨，静音及易于操作。
使用温度：-20℃~+70℃。
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 150 | 010TU080PF | 011TU080PF | 010TU080PF-Q |
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 150 | 010TU080RF | 011TU080RF | 010TU080RF-Q |
| 80 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 150 | 010TU080BD | 011TU080BD | 010TU080BD-Q |
| 100 | 36 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 38 | 200 | 010TU100PF | 011TU100PF | 010TU100PF-Q |
| 100 | 36 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 38 | 200 | 010TU100RF | 011TU100RF | 010TU100RF-Q |
| 100 | 36 | 8 |  |
105x85 | 82x62/78x58 | 9 | 128 | 38 | 200 | 010TU100BD | 011TU100BD | 010TU100BD-Q |
| 125 | 37 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 200 | 010TU125PG | 011TU125PG | 010TU125PG-Q |
| 125 | 37 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 200 | 010TU125RG | 011TU125RG | 010TU125RG-Q |
| 125 | 37 | 10 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 200 | 010TU125BE | 011TU125BE | 010TU125BE-Q |
| 160 | 45 | 20 |  |
140x110 | 110x85/100x75 | 11 | 195 | 60 | 400 | 010TU160PH | 011TU160PH | 010TU160PH-AQ |
| 160 | 45 | 20 |  |
140x110 | 110x85/100x75 | 11 | 195 | 60 | 400 | 010TU160RH | 011TU160RH | 010TU160RH-AQ |
| 160 | 45 | 20 |  |
140x110 | 110x85/100x75 | 11 | 195 | 60 | 400 | 010TU160DH | 011TU160DH | 010TU160DH-AQ |
| 200 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 235 | 67 | 400 | 010TU200PH | 011TU200PH | 010TU200PH-AQ |
| 200 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 235 | 67 | 400 | 010TU200RH | 011TU200RH | 010TU200RH-AQ |
| 200 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 235 | 67 | 400 | 010TU200DH | 011TU200DH | 010TU200DH-AQ |
